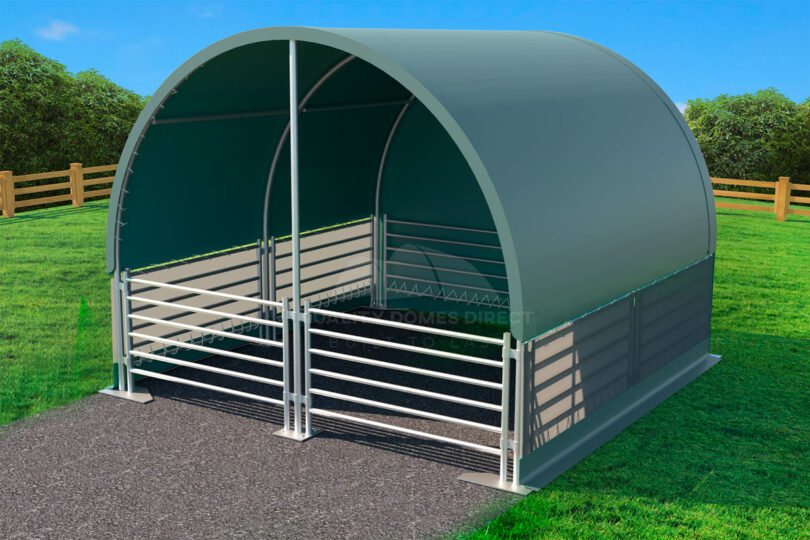

The LS4X4 Premium Livestock Shelter is an engineered, commercial-grade solution designed to provide heavy-duty, year-round protection for your animals.
The 4m x 4m Livestock Shelter. Can also be used for stock Feed and as a general storage shelter.
Animal welfare is the top priority in the design of this shelter, ensuring your animals are well-protected from extreme weather and provided with a safe, comfortable environment all year-round. By offering solid steel reliable shelter, the structure helps reduce animal stress, reduces the risk of heat or cold-related illness, and supports the overall health and well-being of your animals.
Constructed from tough, hot-dip galvanised steel tubing, the frame is engineered for exceptional corrosion resistance and long-lasting strength. Its durable, chip-free finish ensures dependable performance and protection season after season.
With precision pre-cut lengths, every component slots neatly together. No cutting, drilling, or measuring required. Assembly is quick and straightforward: connect the pieces, tighten the bolts, and the result is a sturdy, reliable structure that goes up in no time. Strong, durable, and designed for hassle-free installation (assembly manual included).
The frame is secured to the ground using heavy-duty base plates and stakes. Each arch tube locks firmly into the base plate with high-strength bolts, creating a stable foundation. For added security, steel ground stakes keep the plates anchored in place, while a more permanent installation can be achieved by bolting the plates directly to concrete piers.
Durable, Corrosion-Resistant Frame: Crafted from zinc-coated steel, the pre-cut tube frame offers exceptional resistance to rust—even in Australia’s varied weather. No drilling or cutting is required, ensuring easy, hassle-free assembly.
Rock-Solid Stability: Each robust frame arch securely connects to heavy-duty base plates, which are anchored deep into the ground using solid metal stakes. This guarantees your shelter stays firmly in place, even in tough country conditions.
Adaptable for Permanence: For those seeking a long-term solution, simply set the base plates into concrete piers. This makes this shelter nearly permanent, ready to withstand years of service on your property.
Enjoy the confidence that comes with easy assembly and unwavering structural strength, all in a structure thoughtfully engineered for the rural lifestyle.
Provides complete protection from the elements – rain, wind, and extreme temperatures.
Maintains a dry, comfortable space that keeps animals clean and dry.
Maximises usable interior space with no interior poles or obstructions.
Offers a safe, secure environment for livestock of all kinds – cattle, horses, sheep, goats, pigs etc. by protecting them from predators and other outdoor threats.
Helps prevent weather-related health issues and can reduce the stress in animals.
Allows for efficient feeding and care of animals, even in inclement weather.
Cost-effective solution compared to traditional farm sheds, barns or other permanent structures.
Provides a sheltered space for calving, lambing, or other sensitive livestock activities.
Perfect for horses, sheep, cows, pigs, goats, sheep, emu’s, alpacas or any other animals you have running about.
Can also use it as a temporary carport or feed storage area.
Completely portable. Easy to set up, take down and relocate.
A clutter-free interior with no internal posts.
Wind Rating: 110kmph
Under normal conditions, a 110kmph wind rating is applied to this structure without any tiedown. Location and site elevation is a determining factor for footing design. Consulting a local engineer is highly recommended before assembly.
Size
L (m) W (m) H (m)
4 4 3.1
Frame

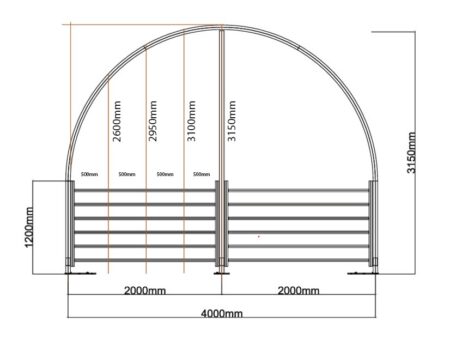

4m wide x 3.2m high (full height). Side rail height 1.2m
Gates are hinged on the side. Outward opening. Each gate is 2m wide x 1.2m high.

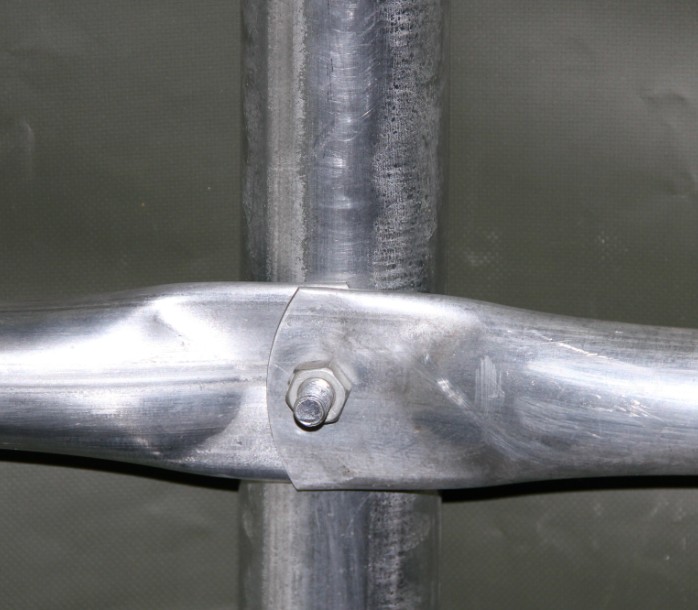

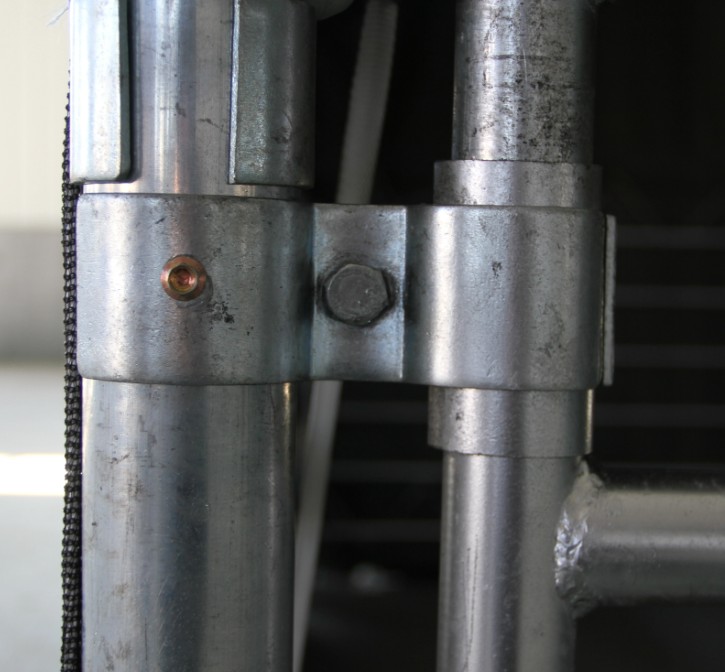

Crafted from corrosion-resistant, hot-dip galvanised steel tube, the frame is designed for long-lasting strength without chipping or rusting – something you can rely on for years to come. Precision pre-cut lengths mean every piece fits perfectly together – no measuring, drilling, or cutting required. Assembly is effortless: simply slot the frame together and tighten the bolts for a rock-solid structure that goes up quickly and easily. Strong, durable, and hassle-free.

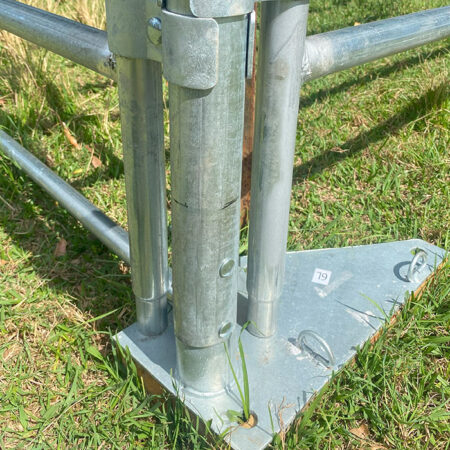

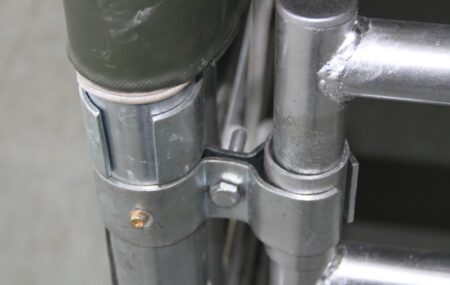

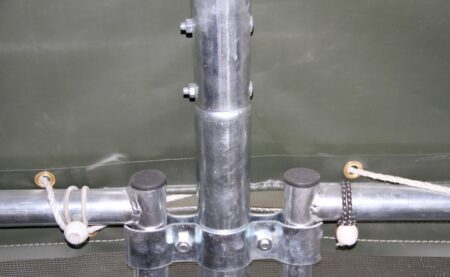

The frame can be anchored to the ground using the supplied ground plates and stakes. Each arch tube attaches to the heavy-duty steel base plate with high-strength bolts to form a solid foundation. If this shelter is to be used on a more permanent basis, bolting the base plates onto concrete piers or concrete slab is highly recommended.
The shelter can be built with basic handyman’s tools. We recommend:
A metric ratchet spanner set (2) or drill with socket set
A set of metric long sockets with drill adapter
Power drill(s) for the sockets makes it easier to tighten up each connection
Heavy duty mash hammer for the stake pegs
2 A frame ladders or a similar platform
Spirit level

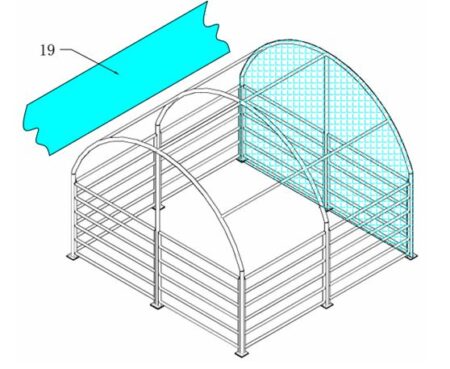

Fabric Cover

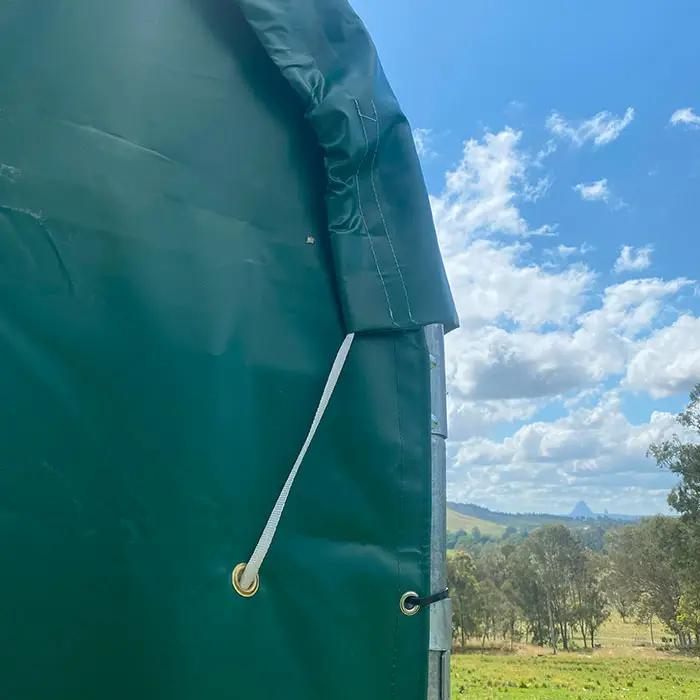

The shelter comes with a premium 450GSM PVC commercial-grade fabric, engineered to withstand demanding outdoor conditions. This heavy-duty material is fully waterproof, keeping animals and equipment dry and protected in heavy rain. It is UV-stabilised to resist sun damage and prevent fabric deterioration, ensuring a long lifespan even under the harsh Australian climate. For added safety, the fabric is fire-resistant, providing an extra layer of protection and peace of mind in high-risk environments. Designed for reliability, this tough PVC cover delivers year-round performance with minimal maintenance.
Durable 450GSM
Heavy-duty construction – commercial-grade PVC for long-lasting durability
Waterproof – complete protection against rain, moisture and rot
UV-stabilised – resists sun damage, fading, and fabric breakdown
Fire-resistant – added safety in high-risk environments
All-weather performance – built to withstand harsh Australian conditions
Benefits of the ‘No Interior Pole’ Design
100% usable interior space – The lack of interior poles or obstructions maximizes the available space inside the shelter for housing livestock.
Flexible layout – Without poles in the way, the interior can be configured and customized to suit the specific needs of the livestock operation, such as stalls, pens, feeding areas, etc.
Cost-effectiveness – The open design without interior supports makes these types of livestock shelters more cost-effective compared to traditional pole barns or other permanent structures.
Ease of access – The unobstructed interior allows for easier movement and access for feeding, caring for, and managing the livestock.
Improved animal welfare – The open design creates a more comfortable, stress-free environment for the animals by eliminating potential hazards or obstacles.
Colour
White.
Packing Case Size
L (m) W (m) H (m) (kg)
2.3 1.11 0.5 400
Features
CHS galvanised steel tube frame
Removable front gates (1200mm panels)

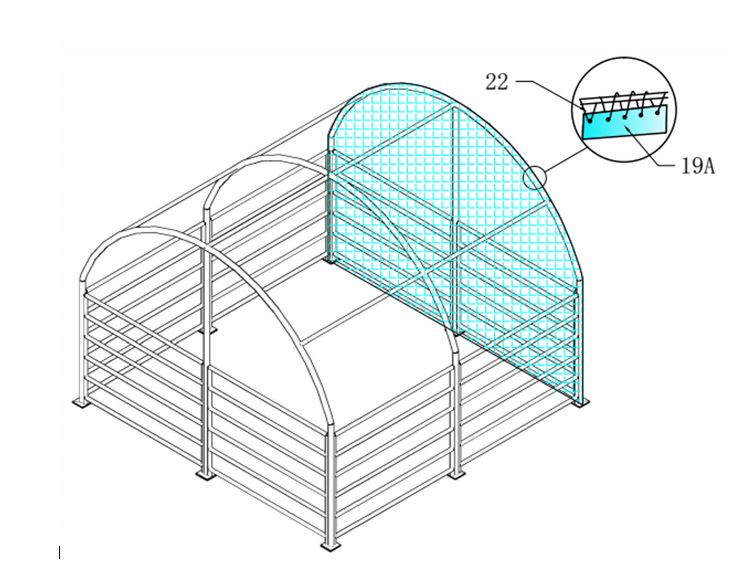

Removable back cover
450GSM UV stabilised PVC cover
100%Waterproof, flame retardant
No interior posts, wires or bracing for maximum space and safety
Easy to install and relocate. Assembly manual included
Specifications

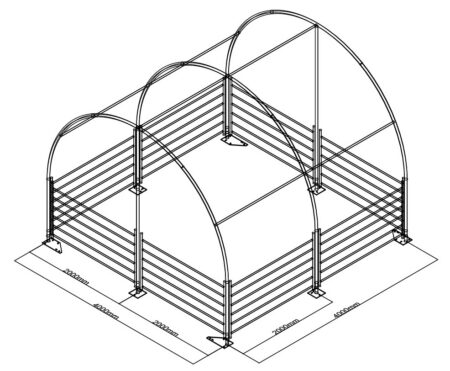

Dimensions: L 4m x W 4m x H 3.1m
1.2m high front gate panels. Side frame panels also 1.2m high.
Floor Area: 16m²
Frame construction: Ø60*1.8mm hot-dip galvanised steel tube, Ø40*1.5mm hot-dip galvanised steel tube purlins and side gates
Roof cover: 450gsm UV stabilised PVC
Packaged dimensions (m): 2.30 x 1.11 x 0.50
1 single Fence/Gate 25×1.2mm
Shipping Weight: 400kg
Warranty
5-year warranty on the frame
